Laser Marking Machine - CO2 Laser
KGK Jet JLC series marking machine uses advanced RF excited CO2 Laser Technology for high-speed coding and marking applications.
- Optical output powers of 30W & 60W with marking speed up to 20,000mm/s
- Three different wavelengths covering wide range of applications.
- Suitable for substrates such as Paper, Plastic, Glass, Wood, Ceramics etc.
- The portable and flexible split design and easy-to-maintain air-cooling system can meet the uninterrupted 24x7 industrial environment.
The CO2 Laser Benefits
High Speed and Efficiency
With marking speeds of up to 20,000 mm/s, production efficiency is significantly boosted, reducing downtime. This makes it ideal for high-throughput industries like packaging and electronics.
Versatility of Materials
Wide wavelength enables CO2 laser marking machines suitable for diverse applications across industries like packaging, automotive, and aerospace.
High Thermal Process Marking
During marking the material absorbs the CO2 laser energy and is vaporized or burned away.
This often results in a dark, contrasted mark on surfaces.
Multi-Language Support
Both software & hardware language support for English, Arabic, Japanese, Chinese, Korean, Italian, German, Spanish, Persian & Turkish. and more.
Faster Return on Investment
These lasers have a long operating life, reducing the need for frequent replacements or repairs.
IP54 and IP65 Ingress Protection
Optional IP54 & IP65 makes printer suitable for harsh production environments
Samples
CO2 Laser Marking on PET Bottle
CO2 Laser Marking on Pharma Packaging
Co2 Laser Marking on Rigid Plastic
Product Specification
| KC-306 / KC-306+ | KC-303 / KC-303+ | KC-302 / KC-302+ | KC-606 / KC-606+ | KC-603 / KC-603+ | KC-602/ KC-602+ | |
| Casing Material | Aluminum Alloy | |||||
| Working Distance | Standard configuration 107mm ~ 450mm (Depends of Application) | |||||
| Marking Field (mm) | 70x70mm ~ 400x400mm (Depends of Application) | |||||
| Marking Speed (mm/s) | 13000 mm/s (for all + Variants <20000> | |||||
| Line Speed | 0~240 m/min (related to material and content) | |||||
| Minimum marking Line Width | 0.1mm (Depends on material) | |||||
| Repeated Precision | 0.005mm | |||||
| Laser Type | RF CO2 Laser | |||||
| Optical Output Power | 30W | 60W | ||||
| Laser Wavelength | 10.6um | 9.3um | 10.2um | 10.6um | 9.3um | 10.2um |
| Cooling System | Air Cooled | |||||
| Screen Size | 10.1 Inch Color LCD Touch Panel | |||||
| Operator Interface | Graphic touch-control system based on Linux | |||||
| File Type | PLT, AI, DXF, PNG, JPG, BMP | |||||
| Barcode Type | CODE128, C0DE39, CODE93, GS1, PDF417, ITF14, Code bar, QR, DM , Hanxin, Aztec, Dot Code, etc. | |||||
| Marking Mode | Marking-on-the-fly, Static marking, Pipeline Mode (Metal, PVC, UPVC & CPVC) | |||||
| Trigger Type | Photoelectric trigger, Pedal trigger, Internal trigger | |||||
| Marking Line Type | Vector graphics, dot matrix | |||||
| Font Type | Single Line, Double Line, Dotted Font, True Type Font | |||||
| Language | English, Japanese, Arabic, Korean, German (14 Languages including Spanish Key) | |||||
| Safety Feature | Key switch, Power start button, Emergency Stop, Potential free interlock | |||||
| External Interface | Control Cabinet: Encoder port, Photo cell port, Signal light port, IO port Touch Panel: USB, RJ45, SD | |||||
| Communication | Ethernet TCP/IP, Rs232 I/O signals available for marking status and interlock control | |||||
| Electrical requirements | 220V AC, 50Hz, 10A | |||||
| Power Consumption | 800W | 1200W | ||||
| Operating Temperature | 0 ~ 40°C, [custom configurations available for high-temperature environments (>40°C)] | |||||
| Dust & Water Proof | IP54 & IP65 | |||||
| Humidity | 5%-80% (non-condensing) | |||||
| Net Weight | 30Kg | 50Kg | ||||

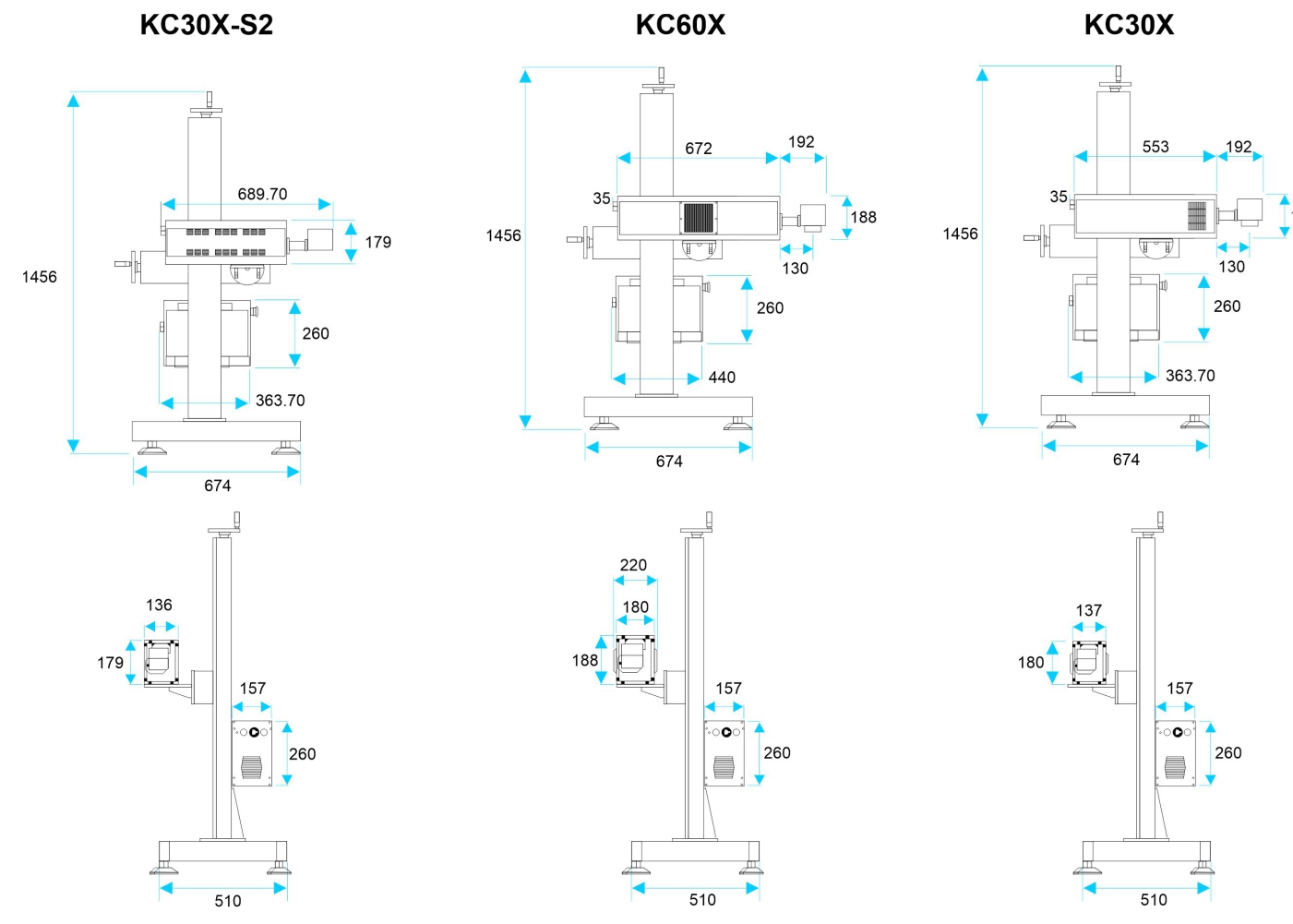

Product Diagram
Product Catalogues
Download the Catalogue For CO2
