Resolution 300dpi Maximum print height 32.4mm
Single controller control 4 heads together to print 4 different messages.
5.7 inch Touch panel designed for ease of operations
The HQ1600 Benefits
High resolution print upto 300dpi
Print speed upto 120 meters/min with print resolution print upto 300dpi
Versatile Print Direction
Print direction Horizontal & Downward directional with 1000 message to store.
One Controller for 4 heads
Single controller control 4 heads together to print 4 different messages.
The printing of 4 different messages can be done using a single controller to control 4 heads together.

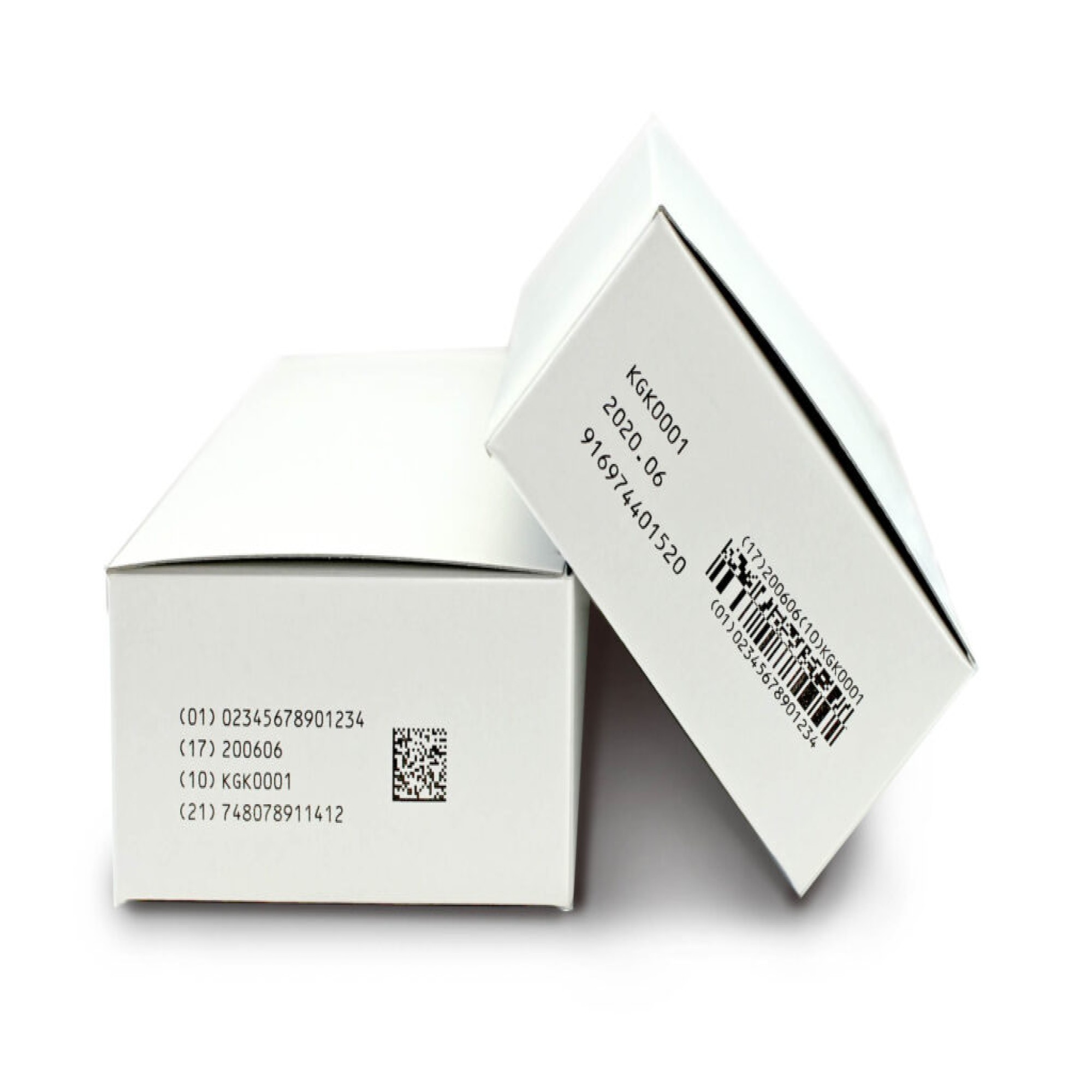

Samples
Sample 1
Sample 2
Sample-3
Product Specification
Product Name | HQ1600 |
Printing Method | Piezo type |
Ink ejection direction | Side, bottom |
Nozzle Array | 384 dots 300dpi |
Maximum Print Speed | 121.9m/min |
Print Height | 32.4mm |
Number of Heads | Up to 4 heads |
Ink type | Oil-based liquid black ink |
Character type | Alphanumeric characters, symbols, hiragana, katakana, kanji (JIS 1st and 2nd) |
Date and time printing | Year (Western/Japanese), month, date, day of the week, hour (12/24H), minute, second, week, date number, AM/PM, offset setting, character allocation, free format |
Numbering | Up to 10 digits up/down, repeat, increment value setting, zero suppression |
Barcode | ITF, Code39, NW7, JAN, Code128, UPC, |
2D Code | QR, Data Matrix, PDF417 |
Operating environment | 5 to 35oC 10 to 80% RH (no condensation) |
Shape | BMP |
Power supply | AC100V 50/60Hz |
Product Diagram
