KGK Jet JLC series marking machine uses advanced RF excited CO2 Laser Technology for high-speed coding and marking applications.
- Optical output powers of 30W & 60W.
- Three different wavelengths covering wide range of applications.
- Suitable for substrates such as Paper, Plastic, Glass, Wood, Ceramics etc.
- The portable and flexible split design and easy-to-maintain air-cooling system can meet the uninterrupted 24x7 industrial environment.
The CO2 Laser Benefits
High Speed and Efficiency
Marking speeds up to 18000mm/s , which enhances production efficiency and reduces downtime. This is ideal for industries requiring high throughput, such as packaging and electronics.
Versatility of Materials
Wide wavelength enables CO2 laser marking machines suitable for diverse applications across industries like packaging, automotive, and aerospace.
High Thermal Process Marking
During marking the material absorbs the CO2 laser energy and is vaporized or burned away.
This often results in a dark, contrasted mark on surfaces.
Multi-Language Support
Both software & hardware language support for English, Arabic, Japanese, Chinese, Korean, Italian, German, Spanish, Persian & Turkish. and more.
Faster Return on Investment
These lasers have a long operating life, reducing the need for frequent replacements or repairs.
IP54 and IP65 Ingress Protection
Optional IP54 & IP65 makes printer suitable for harsh production environments
Samples
CO2 Laser Marking on PET Bottle
CO2 Laser Marking on Pharma Packaging
Co2 Laser Marking on Rigid Plastic
Product Specification
| Item | KC-306 | KC-303 | KC-302 | KC-606 | KC-603 | KC-602 |
| Casing Material | Aluminum Alloy | |||||
| Working Distance | Standard configuration 107mm ~ 450mm (Depends of Application) | |||||
| Marking Field (mm) | 70x70mm ~ 300x300mm (Depends of Application) | |||||
| Marking Speed | <13000> | <15000> | ||||
| Line Speed | 0~240 m/min (related to material and content) | |||||
| Minimum marking Line Width | 0.1mm (Depends on material) | |||||
| Repeated Precision | 0.005mm | |||||
| Laser Type | RF CO2 Laser | |||||
| Optical Output Power | 30W | 60W | ||||
| Laser Wavelength | 10.6um | 9.3um | 10.2um | 10.6um | 9.3um | 10.2um |
| Cooling System | Air Cooled | |||||
| Screen Size | 10.1 Inch Color LCD Touch Panel | |||||
| Operator Interface | Graphic touch-control system based on Linux | |||||
| File Type | PLT, AI, DXF, PNG, JPG, BMP | |||||
| Barcode Type | CODE128, C0DE39, CODE93, PDF417, ITF14, Code bar, OR, DM , Hanxin, Aztec | |||||
| Marking Mode | Marking-on-the-?y, Static marking, Pipeline marking | |||||
| Trigger Type | Photoelectric trigger, Pedal trigger, Internal trigger | |||||
| Marking Line Type | Vector graphics, dot matrix | |||||
| Font Type | Single Line, Double Lines, Dotted Font, True Type Font | |||||
| Language | English, Japanese, Arabic, Korean, German (14 Languages including Spanish Key) | |||||
| Switch | Key switch, Power start button, Emergency Stop | |||||
| External Interface | Control Cabinet: Encoder port, Photo cell port, Signal light port, IO port Touch Panel: USB, RJ45, SD | |||||
| Communication | Ethernet TCP/IP, Rs232 I/O signals available for marking status and interlock control | |||||
| Electrical requirements | 220V AC, 50Hz, 10A | |||||
| Power Consumption | 800W | 1200W | ||||
| Operating Temperature | 0~-40°C | |||||
| Dust & Water Proof | IP54 | |||||
| Humidity | 5%-80% (non-condensing) | |||||
| Net Weight | 30Kg | 50Kg | ||||

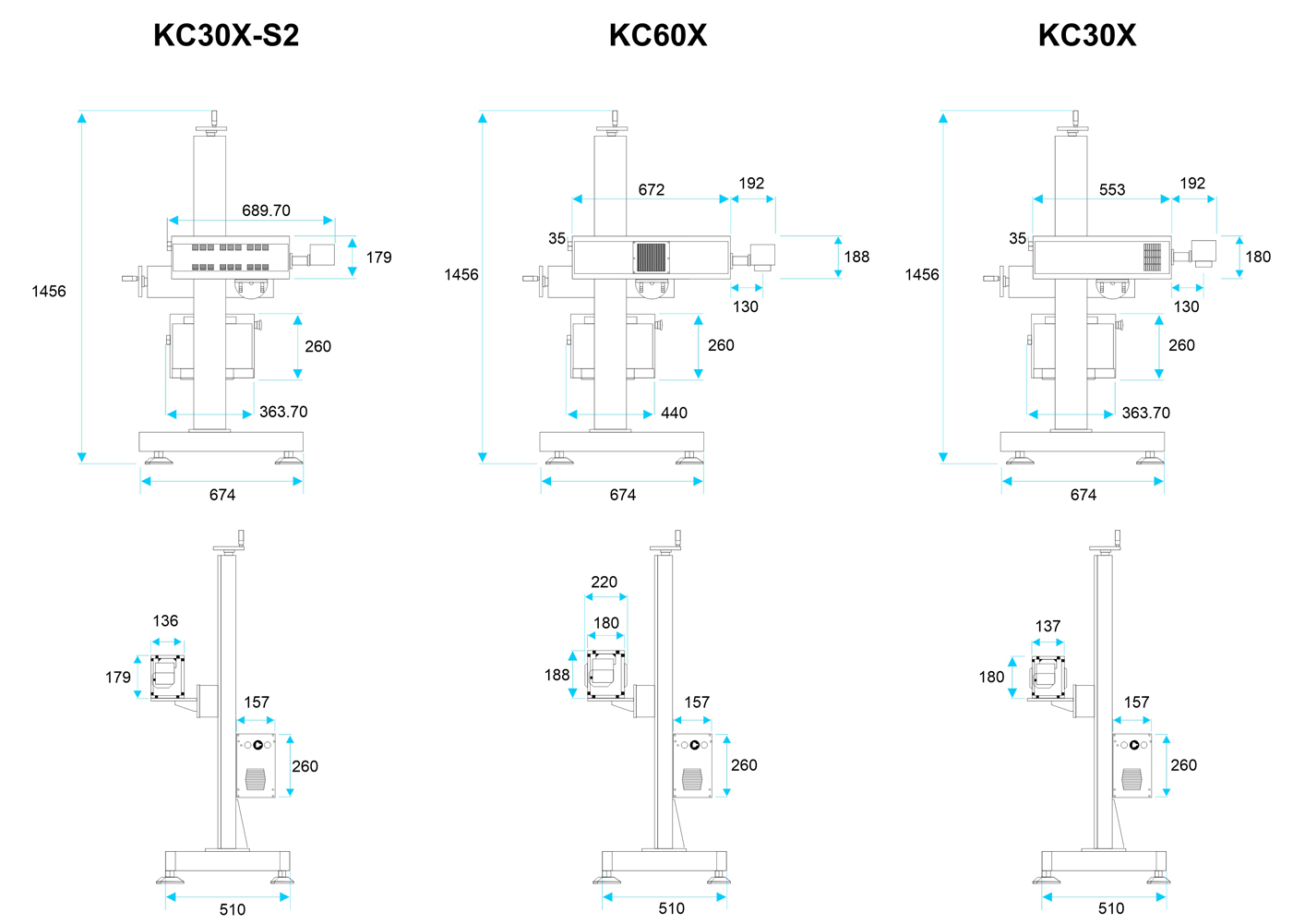

Product Diagram
