The KGK Jet KC series marking laser machine uses a reliable and stable Q-switched fiber laser.
The power range extends from 30W to 50W infrared (1064nm) laser output, capable of meeting the high-speed marking demands of most metal materials and some non-metals such as rubber and resin.
The air cooling system is easy to maintain and features a flexible split design to ensure uninterrupted operation in a 7x24-hour industrial environment.
The Fiber Laser Benefits
IP54 and IP65 Ingress Protection
Deeper Penetration
Longer wavelength enables it to penetrate deeper into materials, making it suitable for deep cuts or ablation on a wide range of surfaces.
Multi-Language Support
Both software & hardware language support for English, Arabic, Japanese, Chinese, Korean, Italian, German, Spanish, Persian & Turkish. and more.
High-Contrast Markings.
Best suited for Metals (steel, aluminum, brass, etc.), plastics, and some ceramics
High speed, high precision
Operates at higher wattages (30W and 50W), making it suitable for deep engraving and cutting of thicker materials.
Samples
Fiber Laser Marking on Metal
Fiber Laser Marking on PVC Cable
Fiber Laser Marking on GI Pipe
Product Specification
| Item | KF-30 | KF-30 PLUS | KF-50 | KF-50 PLUS |
| Casing Material | Aluminum Alloy | |||
| Working Distance | Standard configuration 107mm ~ 450mm (Depends of Application) | |||
| Marking Field (mm) | 70x70mm ~ 300x300mm (Depends of Application) | |||
| Marking Speed | ≤13000 mm/s | ≤18000 mm/s | ≤15000 mm/s | ≤18000 mm/s |
| Line Speed | 0~240 m/min (related to material and content) | |||
| Minimum marking Line Width | 0.01mm | |||
| Repeated Precision | 0.005mm | |||
| Laser Type | Q-Switched Plused Fiber Laser | |||
| Optical Output Power | 30W | 50W | ||
| Laser Wavelength | 1064um | |||
| Cooling System | Air Cooled | |||
| Screen Size | 10.1 Inch Color LCD Touch Panel | |||
| Operator Interface | Graphic touch-control system based on Linux | |||
| File Type | PLT, AI, DXF, PNG, JPG, BMP | |||
| Barcode Type | CODE128, C0DE39, CODE93, PDF417, ITF14, Code bar, OR, DM , Hanxin, Aztec | |||
| Marking Mode | Marking-on-the-fly, Static marking, Marking on Pipe (Metal, PVC, UPVC & CPVC) | |||
| Trigger Type | Photoelectric trigger, Pedal trigger, Internal trigger | |||
| Marking Line Type | Vector graphics, dot matrix | |||
| Font Type | Single Line, Double Lines, Dotted Font, True Type Font | |||
| Language | English, Japanese, Arabic, Korean, German (14 Languages including Spanish Key) | |||
| Switch | Key switch, Power start button, Emergency Stop | |||
| External Interface | Control Cabinet: Encoder port, Photo cell port, Signal light port, IO port Touch Panel: USB, RJ45, SD | |||
| Communication | Ethernet TCP/IP, Rs232 I/O signals available for marking status and interlock control | |||
| Electrical requirements | 220V AC, 50Hz, 10A | |||
| Power Consumption | 400W | 600W | ||
| Operating Temperature | 0~-40°C | |||
| Dust & Water Proof | IP54 & IP64 | |||
| Humidity | 5%-80% (non-condensing) | |||
| Net Weight | 30Kg | |||

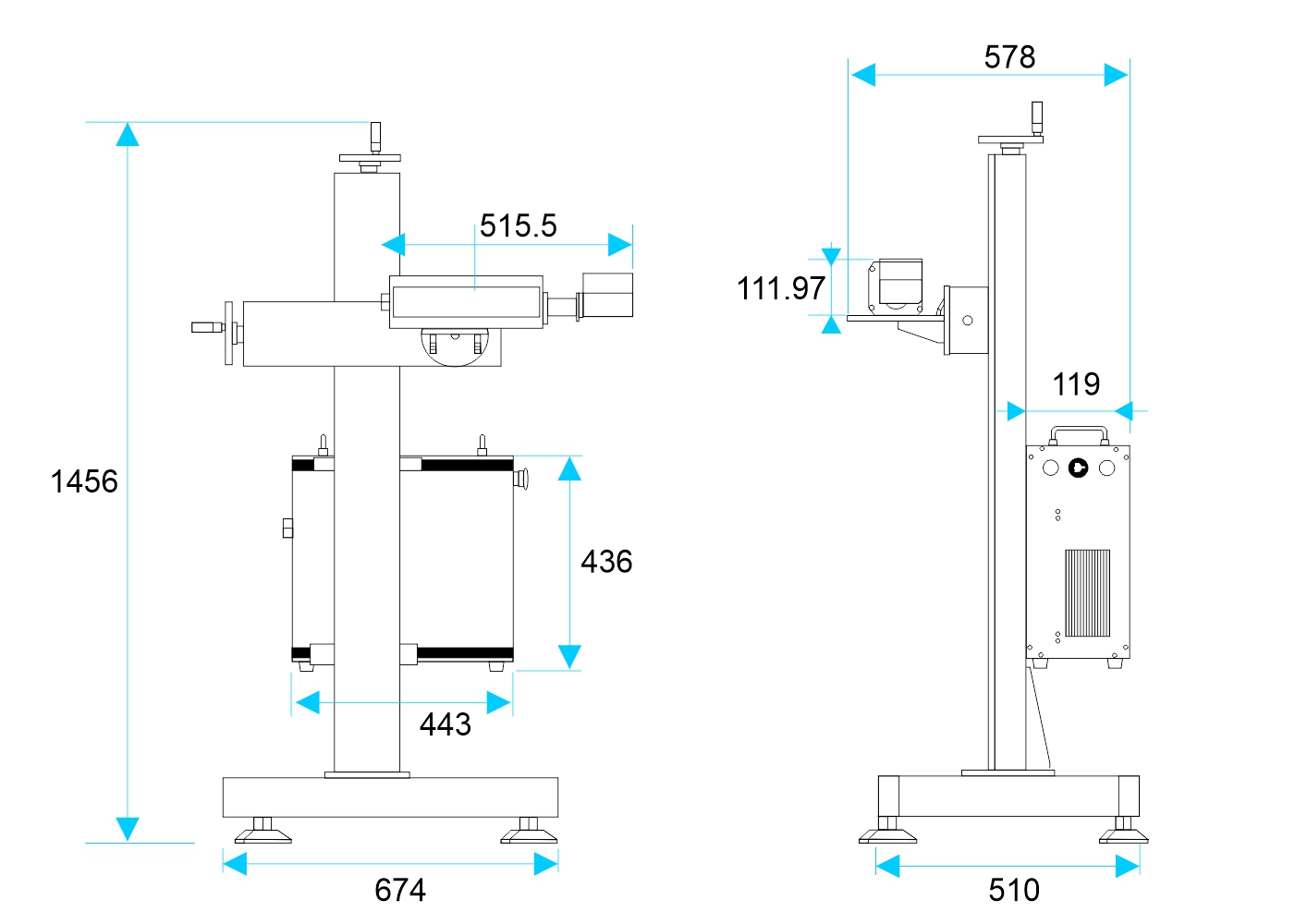

Product Diagram
