Redefining Traceability in Tissue Packaging
How the KGK Jet JPT2900 CIJ Printer Mastered High-Speed Coding on Flexible Substrates
A leading personal care manufacturer operating high-speed tissue packaging lines was battling blurred codes, substrate bounce, and frequent printhead downtime. After deploying the KGK Jet JPT2900 continuous inkjet (CIJ) printer, the facility achieved 99.8% uptime, a 94% reduction in coding errors, and 4-line legible printing at speeds exceeding 200 metres per minute — all on flexible plastic and paper film substrates.
The Challenge: Coding on High-Speed Flexible Packaging
Tissue paper manufacturers operate under tight margins and unrelenting production schedules. Packaging lines often run 24/7, and every second of unplanned downtime translates directly into cost. This customer faced a specific set of technical challenges that standard batch coding machines simply could not solve.
1. Multi-Line Coding at High Speed
Regulatory compliance and consumer engagement demanded four distinct lines of data on every pack:
- Manufacturing date and expiry date
- Batch number for traceability
- Dynamic QR code for anti-counterfeiting and consumer engagement
Most industrial inkjet printers on the market compromise on print quality as line count increases. At production speeds of 200–300 metres per minute, previous CIJ coding machines produced blurred or illegible characters — triggering downstream rework and waste.
2. Substrate Sensitivity and Bounce
Tissue packaging uses thin, flexible plastic films and specialised paper wraps — materials that are inherently non-uniform. At high conveyor speeds, these substrates 'bounce', meaning the distance between the printhead and the surface varies continuously. A continuous inkjet printer must maintain a consistent throw distance of at least 10 mm and must code without ever touching the substrate, while delivering instantly dry, smear-free marks that do not transfer to adjacent film.
3. Printhead Clogging in Dusty Environments
Tissue manufacturing generates fine paper dust that accumulates on exposed printhead nozzles. With conventional CIJ machines, operators were forced to halt production at regular intervals to manually clean printheads — eroding both uptime and operator confidence.

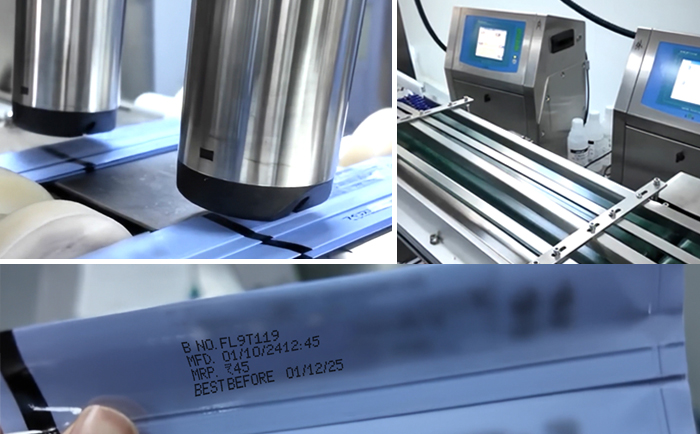

The Solution: KGK Jet CIJ JPT2900
After a thorough evaluation, the manufacturing engineering team selected the KGK Jet JPT2900 — an industrial continuous inkjet printer engineered from the ground up for 24/7 high-speed production environments. The JPT series addresses the specific failure modes of generic inkjet coding machines through three core technology pillars.
Patented High-Frequency Printhead
The JPT2900's patented printhead optimises the trajectory and flight of every individual ink droplet. High-frequency droplet generation ensures that four lines of production line code remain perfectly aligned even as packaging moves at hundreds of metres per minute — eliminating the vibration-induced blur that plagued the facility's previous inkjet coding machines.
Proprietary Fast-Dry Ink
KGK Jet's proprietary fast-dry inks are formulated for adhesion and instant drying on a wide range of packaging substrates — white, coloured, patterned, or transparent film. High-contrast codes meet the readability requirements of both human operators and automated vision inspection systems. The JPT2900's 40-micron nozzle (versus the industry-standard 60-micron) delivers finer droplet placement, directly contributing to:
- 15% reduction in solvent consumption per shift
- Sharper character edges across all four print lines
- Extended ink & solvent life
Nozzle Capping Technology
A proprietary automatic nozzle-capping mechanism seals the printhead whenever the line is idle or during micro-stoppages. This prevents ink from drying in the nozzle and eliminates dust ingress — the root cause of clogging in tissue manufacturing environments. Operators no longer need to schedule manual cleaning stops, recovering previously lost production time.
Built-In Preventive Maintenance System
The JPT2900 includes KGK Jet's proprietary service management platform, an embedded monitoring system that tracks component wear and automatically triggers a preventive maintenance service request before a failure can occur. This proactive approach is a primary driver of the system's 99.8% uptime figure — a metric achieved during the initial six-month evaluation period.
Performance Results: Six-Month Evaluation Data
The following results were recorded during the six-month post-installation evaluation period on live tissue packaging lines.
|
Performance Metric |
Result Achieved |
Improvement vs. Previous |
|
Coding Speed (2-line) |
Up to 300 m/min |
2× faster |
|
Coding Speed (4-line) |
Up to 200 m/min |
Enabled for first time |
|
System Uptime |
99.8% |
+12% improvement |
|
Solvent Consumption |
−15% reduction |
40 µm vs 60 µm nozzle |
|
Coding Error / Waste |
−94% reduction |
Near-zero defect rate |
Key Benefits: KGK Jet JPT2900 for Tissue Packaging
|
Feature |
Benefit for
Tissue Packaging Lines |
|
4-Line
High-Speed Clarity |
Crisp,
legible print at 200+ m/min — meets regulatory and brand standards without
compromise. |
|
Nozzle
Capping Technology |
Auto-seals
the printhead to prevent ink contamination and clogging — critical in
dust-heavy tissue manufacturing environments. |
|
Proprietary
Fast-Dry Inks |
Instantly dry
on plastic films, paper, and transparent wraps with zero smear or transfer
risk. |
|
10mm
Non-Contact Throw Distance |
Handles
substrate bounce and uneven surfaces without touching the packaging. |
|
ERP /
Industry 4.0 Integration |
Real-time
data serialisation enables unique per-pack identification, targeted recalls,
and grey-market protection. |
|
Preventive
Maintenance Alerts |
Built-in
service management system triggers scheduled maintenance before failures
occur — maximising uptime. |
|
Intuitive
Touchscreen UI |
Operators
switch between SKU coding formats in seconds, reducing line changeover time
significantly. |
|
Modular
Low-Maintenance Design |
Fewer moving
parts mean reduced service intervals and lower total cost of ownership. |
Industry 4.0 and Supply Chain Traceability
- Targeted product recalls — isolate affected batches without a full line withdrawal
- Grey-market protection — unique codes confirm product authenticity at point of sale
- Consumer engagement — dynamic QR codes link to product information, promotions, or brand content
- Regulatory compliance — complete and auditable coding records for FSSAI, BIS, and export markets
Conclusion: A Future-Proof Investment
The deployment of the KGK Jet CIJ JPT2900 delivered measurable operational improvements across every key metric. By eliminating the technical barriers of 4-line coding on flexible substrates — and by replacing reactive maintenance with a proactive service intelligence system — KGK Jet has empowered this personal care manufacturer to scale their tissue packaging operations with confidence.
For any FMCG or personal care facility evaluating industrial inkjet printers or batch coding machines for high-speed flexible packaging lines, the KGK Jet JPT2900 represents a proven, future-proof investment in quality, compliance, and operational efficiency.
